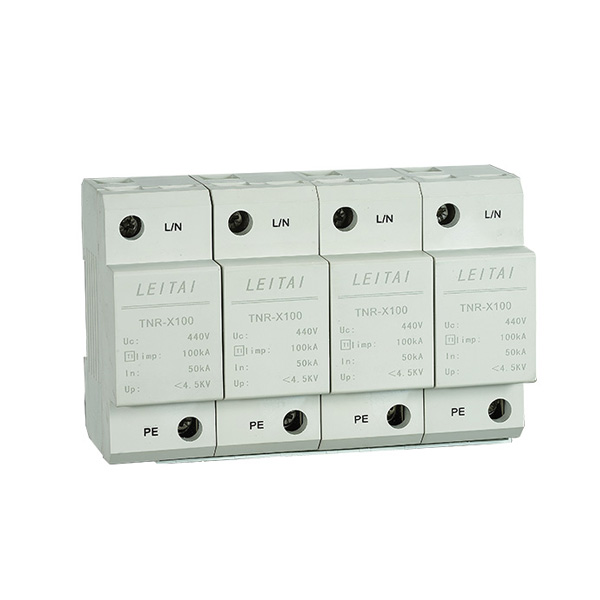

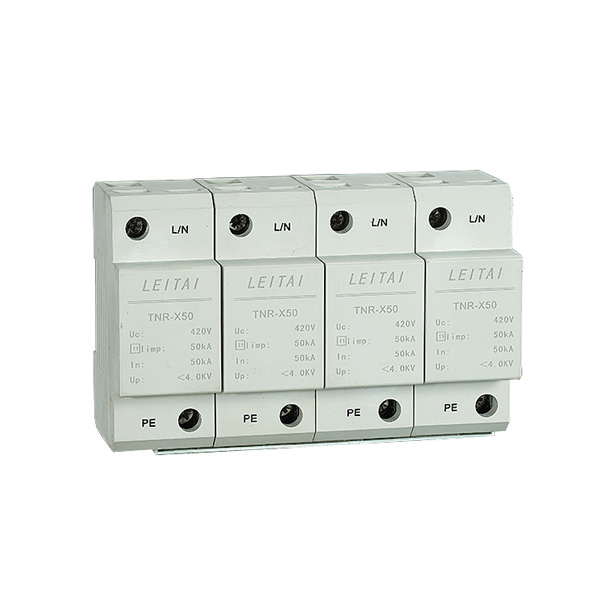

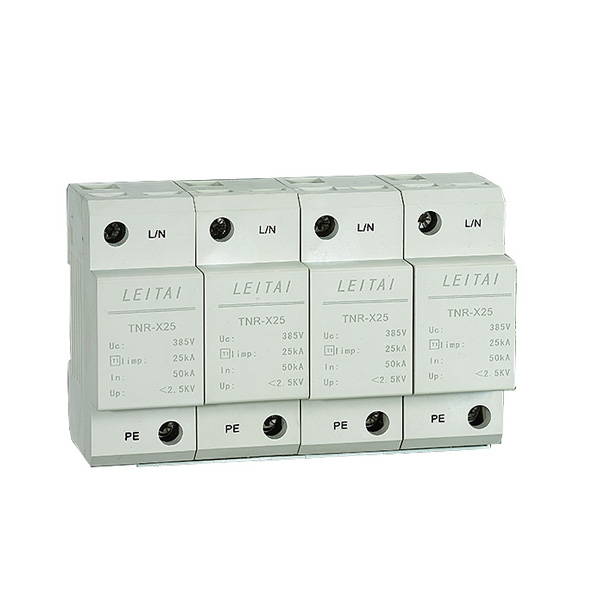

TNR-X series surge protective device is
suitable for protecting all kinds of electronic and electrical equipments in
buildings of T1 class lightning protection area, where it’s easy caused lightning
overvoltages. Mainly used for main distribution system and installed on the
front end of power distribution cabinet as First tier protection
IEC61643-11 Standards
A surge protective device of T1 should be installed at the general distribution
box connected with the power supply. The voltage level of surge protective device
should be less than or equal to 2.5KV. When the impulse current value is not
determined, the impulse current should be equal to or larger than 12.5KA
| Model | TNR-X(100) | TNR-X(50) | TNR-X(25) | TNR-X(15) |
| Maximum sustained operating voltage Uc（V~） | 255,385,440 | 255,385,440 | 320,385,440 | 320,385,440 |
| Nominal discharge current ln(ka) | 50 | 50 | 50 | 30 |
| Maximum impact current limp(ka) | 100 | 50 | 25 | 15 |
| Protection level Up(kv) | ＜2.5~4.5 | ＜2.5~4.0 | ＜2.5~3.5 | ＜2.5 |
| Protection mode | L/N-PE L-N | L-N-PE L-N | L-N-PE L-N | L-N-PE L-N |
| response time (ns) | ＜100 | ＜100 | ＜25 | ＜25 |
| Working temperature range（℃） | -40~+70 | |||
| Intercepting area of access wire（mm2） | 16-35（Multi strand copper cored line） | |||
| Power supply system | TN TT IT | |||

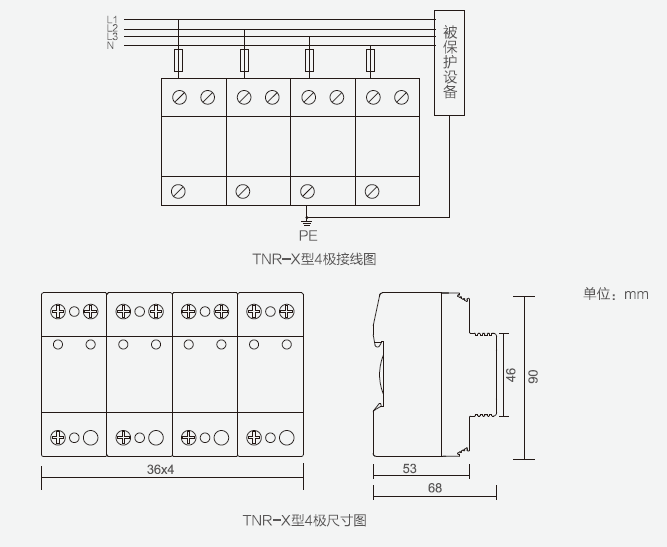

This product is installed in parallel in front of the protected equipment, and is installed with fusing circuit protection. This product is installed around the guide rail as a combustible material, and should keep the 10cm distance from each part.
