1. Needn't consider the load current, plugable, It can be replaced without cutting off power, easy to maintain;
2. built-in temperature control circuit breaker, high safety performance, no continuous flow;
3. the indicator window green is normal, red indicates failure, prompt replacement, clear and easy to argue;

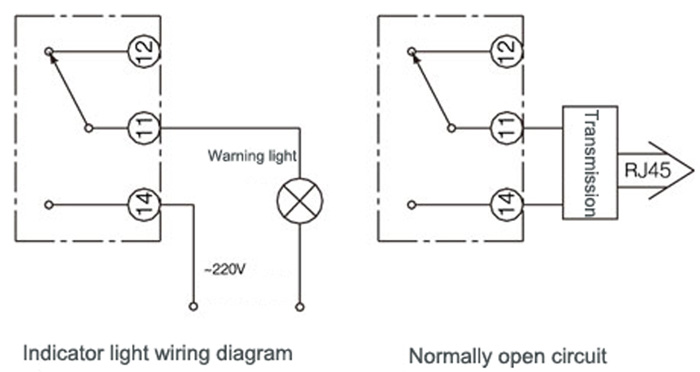

4. The Remote Control interface (terminal point) is used to realize the remote monitoring work state.
5. Y type design, three groups of high performance MOV, more efficient and safer.
photovoltaic PV CB/CE/CQC TUV certification
https://www.certipedia.com/?locale=en just input our company resgister No. 50258836
or certificates No.1419061715, you can check online.
Electrical parameters | technical data |
Operating voltage of PV system Ucpv | 1500VDC |
Protection level | ≤4.5kV |
Nominal discharge current | 20kA |
Maximum discharge current | 40kA |
Connection structure | Type Y |
General parameters | |
Outer size(Width * height * depth) | 54X90X65 |
work environment | -40~+70℃,relative humidity<(25℃以下) |
Installation method | 35mm Standard track |
Window indication | Green: normal; red: failure |
telecommunication equipment | 11.14 often open; 11.12 often closed |
