HOME - PRODUCTS - Surge protective device

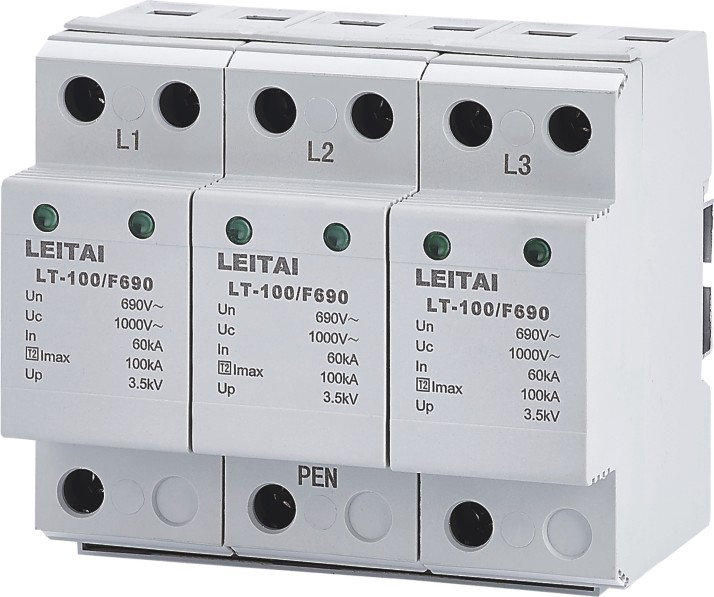

Surge protective device for wind power generation system
Protection scheme
technical parameter
Model / parameter Maximum continuous operating voltage Uc（V-） Nominal discharge current ln（kA） Maximum discharge current imax Structure schematic diagram
LT-40/F275-2 275 20 40
LT-40/F440-2 440
LT-40/F550-2 550
LT-40/F760-2 760
LT-40/F760-2 1000
LT-80/F275-3 275 40 80
LT-80/F440-3 440
LT-80/F550-3 550
LT-80/F760-3 760
LT-80/F1000-3 1000
LT-100/F275-3 275 60 100
LT-100/F440-3 440
LT-100/F550-3 550
LT-100/F760-3 760
LT-100/F1000-3 1000

Note 1:F represents a surge protector for wind power system

Note 2: signal control and detection surge protector

Simple diagram and shape size

Small scenery complementary power generation and size diagram
