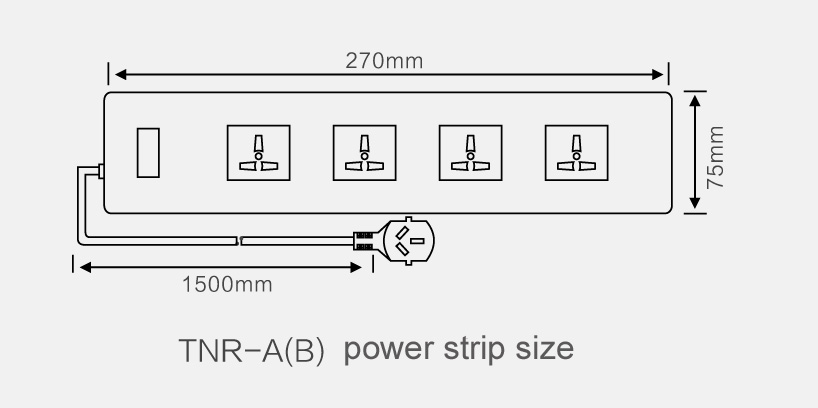

The TNR-A lightning protection socket is a single-phase three-line
strip, which combines the surge protector and the power socket perfectly. It is
suitable for terminals of power supply equipment, and is widely used in the
computer room, office, and the lightning protection for household appliances.
The display is normal under the red light. When the lightning chip is
deteriorated, the red indicator is extinguished.
The TNR-B type is a leakage protection type, which can
effectively prevent the occurrence of personal electric shock accidents and
improve the safe operation of the equipment.

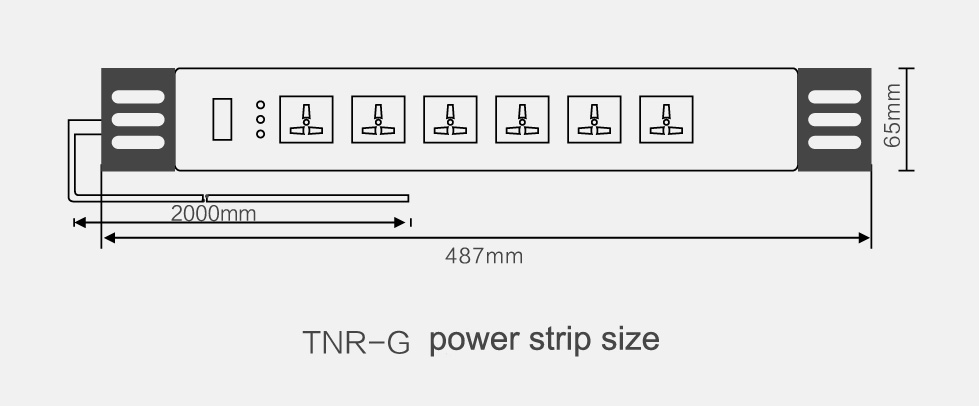

The TNR-G type lightning protection socket is installed
in the 19 inch standard cabinet. It can be used as an equipment's surge
protection device, so that the device is free from transient or overvoltage
damage caused by lightning or electronic interference. It can be widely used in
office, machine room and industrial place. It is especially suitable for
industrial and electronic cabinet, including PC cabinet, data frame, network
cabinet and industrial control cabinet. It provides a perfect protection for
the AC power supply of sensitive equipment.
For the reliable protection of precision equipment
for you, please strictly install wiring (L- logo red, N- black, PE- color), the
ground wire should be connected by 4mm - Multi Strand copper wire.
Model | TNR-A | TNR-B(Leakage protection type) | TNR-G |
Rated working voltage Un(V~) | 220/47-63Hz | 220/47-63Hz | |
Maximum continuous operating voltage Uc(V~) | 320 | 320 | |
Rated current I(A) | 10 | 16 | |
Rated power P(kW) | 2.2 | 3.5 | |
Nominal discharge current In | 5kA | 5kA | |
Maximum discharge current lmax | 10kA | 10kA | |
Built-in thermal fuse | 120℃/10A | 120℃/16A | |
Built-in self duplex overload protector | 16A | 20A |
